26.9.3.2 File Manager

Sort By Date

Select the file or folder display order for the File Manager from [Descending] or [Ascending] date order.

If there are more than 1001 files or folders in the directory, you cannot run sort. Only the normal display style will show.
Specify a full path (folder name and file name) to define the data to display in the File Manager. Define the full path with 100 single-byte characters or less.

Default Path

Specify the first folder to be displayed using the File Manager.

Direct

Set the entire path of the external storage folder you want to display first.

Address

Set the word address that contains the entire path of the external storage folder you want to display first. Starting with the specified word address, word addresses for the number set in [Number of Characters] are mapped.

Text will be stored using native code. Please refer to the following for your local character codes.
6.2.4 Supported Character Codes - Stroke Font/Standard Font

Native code is defined from the [System Settings], [Device/PLC], [Text Data Mode] setting. Text Data Mode only supports 1, 2, 4, and 5.

[Number of Characters] can be set using up to 90 single byte characters.
When a display unit's language is English, specifying a Japanese path may not work properly.
When [Select Movie] is selected as the [Action Mode], set the default path after the “Movie\” folder.
When the file manager is displayed, the cursor is on the first file in the list.

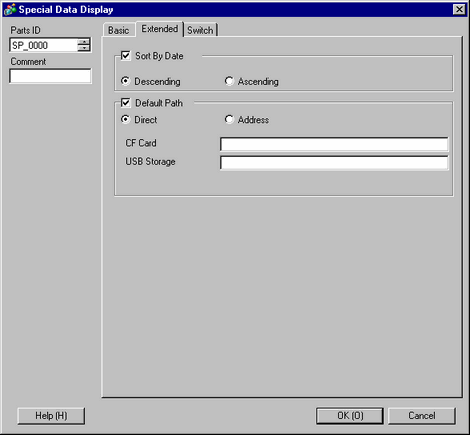

26.9.3.2 File Manager - Extended
