26.7.1 Procedure - Displaying/Editing CSV data on the Screen

Configures the settings to display, edit, and print CSV data stored on the CF Card.

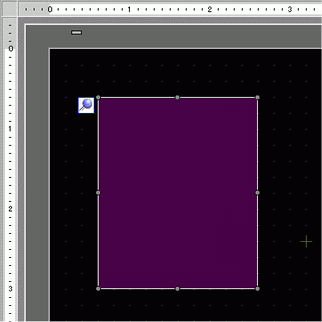

1. From the [Parts (P)] menu, point to [Special Data Display (P)] and select [File Manager (M)]. Place the Part on the screen.

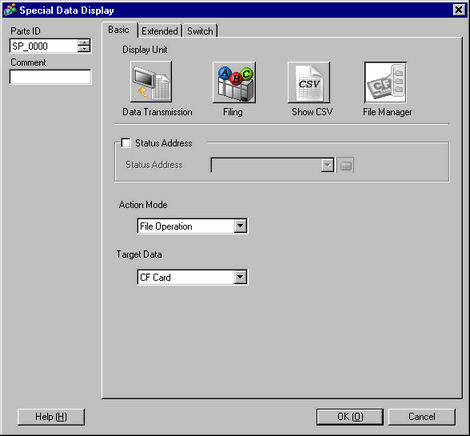

2. Double-click the new Special Data Display [File Manager]. The settings dialog box appears.


3. In [Action Mode], select [File Operation]. In [Target Data], select [CF].

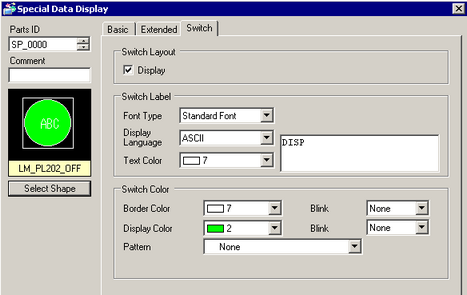

4. Click the [Switch] tab and under [Switch Layout] select the [Display] check box. Select the shape, label and text color. Click [OK (O)].



   • Depending on the switch type, [Switch Color] may be enabled.

   • When you select a switch and press the [F2] key, you can directly edit the text on the label.

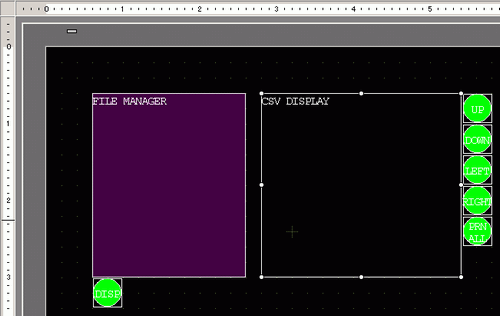

5. Special Data Display Part [File Manager] is now configured. You can move the switches to the appropriate locations.


6. On the same screen as the [File Manager], from the [Parts (P)] menu, point to [Special Data Display (P)] and select [Show CSV (C)]. Place the [Show CSV] on the screen.

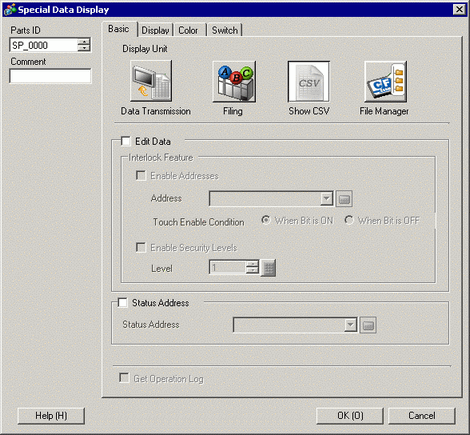

7. Double-click the placed Special Data Display [Show CSV]. The following dialog box appears.


8. Select the [Edit Data] check box.

9. Click the [Display] tab. In [Font] set the [Font Type] and [Size].
   Select the [Show Column] check box, if necessary.

10. Click the [Color] tab. Set the text color and background color.

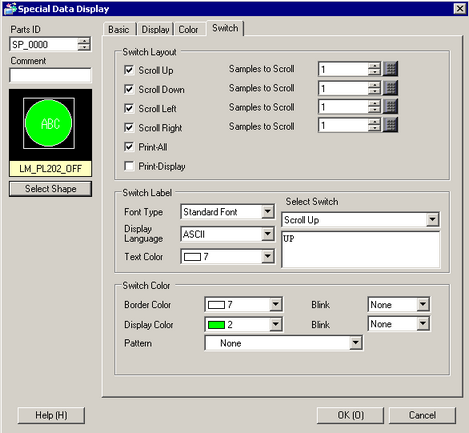

11. Click the [Switch] tab. Select the check boxes for any necessary scroll or print switches for the Show CSV. Set the number of rows or columns that a scroll switch moves when pressed.
    Select the shapes, label and text color. Click [OK (O)].




    • Depending on the switch type, [Switch Color] may be enabled.

    • When you select a switch and press the [F2] key, you can directly edit the text on the label.

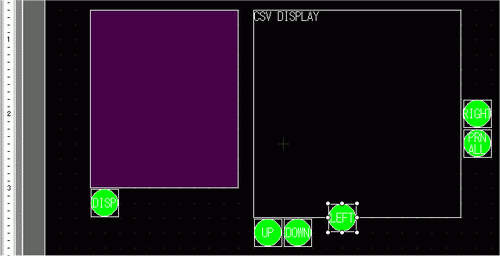

    Special Data Display Part [Show CSV] is now configured. Move the switches to the desired locations.
