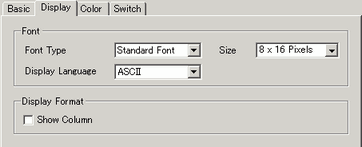

26.9.2.2 Show CSV - Display

Font Type

Choose a font type for the CSV data.

This is a Bitmap font. Choose the character height and width magnification ratio. When you magnify/shrink characters, the outline may become rough or the letter may appear compressed.

This is an outline font where the ratio of the character height/width is fixed. The letters will have a smooth outline even if you magnify/shrink them. However, this font uses more disk space on the display unit.

Size

Select a font size for the CSV data.

Specify "Width x Height" from [8 x 8] to [64 x 128] in 8 pixel units, or select a fixed size from [6 x 10], [8 x 13], [13 x 23].

6 to 127 pixels

Display Language

Select a language for the CSV data from [Japanese], [ASCII], [Chinese (Traditional)], [Chinese (Simplified)], [Korean], [Russian (Cyrillic)], or [Thai].

Show Column

Select to display the row number and column number in the [Show CSV]. The column portion cannot be edited or printed.
