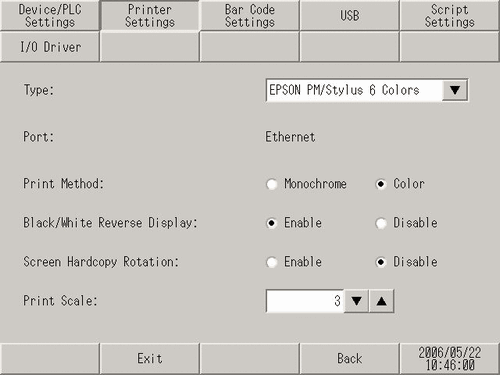

Set the model of the printer connected to the display unit and the print method.
Type
Select the printer type from one of the following: [NEC PR201], [EPSON ESC/P High Speed], [EPSON ESC/P High Quality], [HP Laser Jet], [EPSON PM/Stylus 6 Colors], [EPSON Stylus 4 Colors], [GP Remote Printer Server], [Text ASCII], [EPSON ESC/PR High Speed], [EPSON ESC/PR High Quality], or [EPSON ESC/PR].
For [Text ASCII], the text's shape may be different because the print method is different.
[EPSON ESC/PR], [EPSON ESC/PR High Speed] and [EPSON ESC/PR High Quality] are available when [Port] is set to [Ethernet] or [USB].
You cannot select these printers if the GP-3300 series revision is [Before Rev*4].
Port
The port to which the printer is connected is displayed.
Print Method
Select the print method from [Monochrome] or [Color].
For monochrome display units, the output will be monochrome even if [Color] is selected as the [Print Method].
Black/White Reverse Display
Select whether or not to print with black and white reversed.
Screen Hardcopy Rotation
Select the orientation for the screen hard copy. Select either [Horizontal] or [Vertical].
Print Scale
When using [EPSON PM/Stylus 6 Colors] or [EPSON Stylus 4 Colors] printers, set the print ratio from 1 to 4.
