M.17.3.3 Peripheral Settings - Bar Code Settings

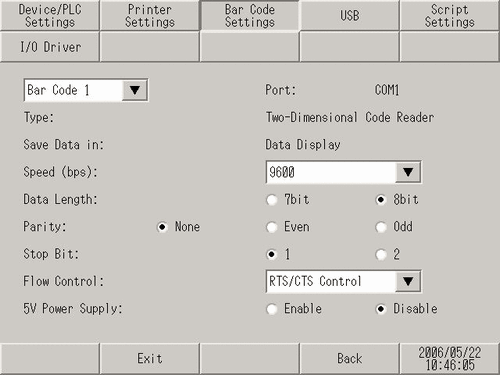

Set the options used for communication with the bar code reader connected to the display unit.

Port

Displays the port to connect from [COM1] or [USB].

Type

Select the bar code, [Bar Code 1] or [Bar Code 2].

Save Data in

Displays the location of data read from the bar code reader, either [Data Display] or [Internal Device].

Speed

Select the transmission speed between connected equipment and the display unit. Select [2400], [4800], [9600], [19200], [38400], [57600], or [115200].

Data Length

Select the bit length of communication data. Select either [7 bit] or [8 bit].

Parity

Select the parity check. Select [None], [Even], or [Odd].

Stop Bit

Select the length (bit) of the stop bit from 1 and 2.

Flow Control

Select the communication control system which monitors and prevents overflow of transmission data. Select [None], [ER (DTR/CTS) control], or [RTS/CTS control].

5V Power Supply

Select whether or not to supply 5V of power from the display unit.
