Output (CH1)

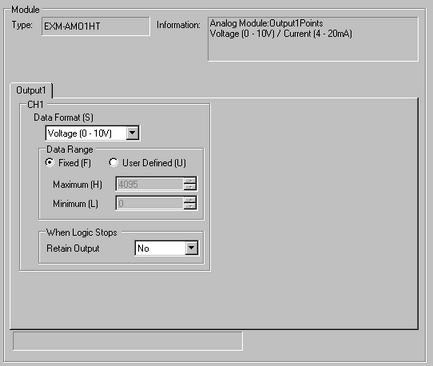

Configures settings for module analog output terminals.
Data Format
Select a data type from either [Voltage (0-10V)] or [Current (4-20mA)] for analog output.
Fixed
The analog values in the voltage and current output settings appear in the range of 0 to 4095 as shown below.
User Defined (Maximum/Minimum)
The analog values in the voltage and current output settings appear within the range of [Maximum] and [Minimum] settings.
The available values are as follows.
Upper limit: minimum to 32767
Minimum: -32768 to maximum
Retain Output
Select whether or not you want to retain output values when the logic is stopped. Select [Enable] to retain output values even if the logic stops.
