Inputs (CH1 to CH2)

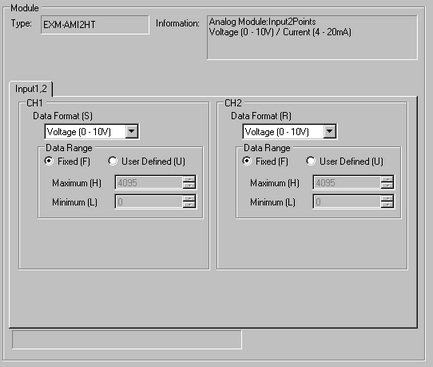

Configure the module's analog input terminal settings.
Data Format
Select the data format from [Disable], [Voltage (0-10V)] or [Current (4-20mA)] for analog input.
When [Disable] is selected in [Data Format], the values in [User Defined (Maximum/Minimum)] will be set to defaults.
Fixed
The analog values in the voltage and current input settings appear in the range of 0 to 4095 as shown below.
This is displayed only when [Voltage (0-10V)] or [Current (4-20mA)] is selected in [Data Format].
User Defined (Maximum/Minimum)
The analog values in the voltage and current input settings appear within the range of [Maximum] and [Minimum] settings. The available values are as follows.
Maximum: minimum to 32767
Minimum: -32768 to maximum
This is displayed only when [Voltage (0-10V)] or [Current (4-20mA)] is selected in [Data Format].
