31.3.2 I/O Driver Settings Guide - DIO Driver

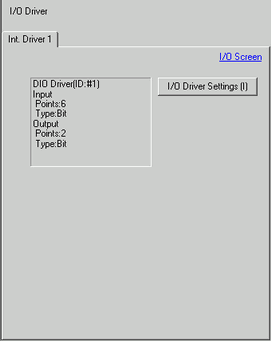

When using the AGP-XXXXX-D81 display unit, in the System Settings click [I/O Driver] to display the following window.

I/O Driver Settings

This button displays the [I/O Driver Settings] dialog box.

I/O Screen

Click the button to switch to the I/O screen.

I/O Driver Settings

Input

Select the variable type for the input from either [Bit] or [Word].

The Number of Points is 6 (fixed).

Output

Select the variable type for the output from either [Bit] or [Word].

The Number of Points is 2 (fixed).

Retentive Output

Select whether or not you want to retain output values when the logic is stopped. When this check box is selected, I/O values are retained even when the display unit is shut down.
