To display two screens vertically, on the [View (V)] menu, point to [Editing Area (B)], and then click [Tile Vertically], or click
.
The following example shows the Logic (MAIN) and I/O (FLEX NETWORK) windows displayed side by side.
To display two screens vertically, on the [View (V)] menu, point to [Editing Area (B)], and then click [Tile Vertically], or click .
Click and drag the instruction operand on the Logic and drop the instruction operand on the terminal to be mapped, when the pointer changes from
to
.
It is not possible to map an address where the pointer is displayed as .
Each I/O terminal address on the I/O can be dragged and mapped to an instruction operand in the logic program.

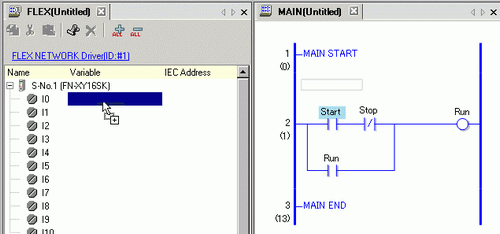

Click an address in the I/O, and drag the address to the Logic instruction operand you want to map. Release the mouse where the pointer changes from to
.

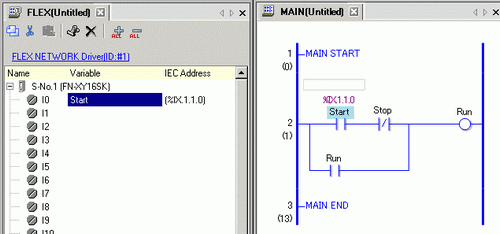

The address will be mapped and the I/O address (IEC address) will be displayed.
The I/O address is also displayed in the logic program.
31.1.1.4 I/O Address Format
