30.7.4 [Comment List] Window

Use the [Comment List] to view variable, symbol, system variable, and rung comments in the logic program.

Using the [Comment List] Window

1. On the [View (V)] menu, point to [Work Space (W)] and then click [Comment List (C)]. The [Comment List] window opens.

2. In [Target Item], select the type of comment type you want to display in the list.

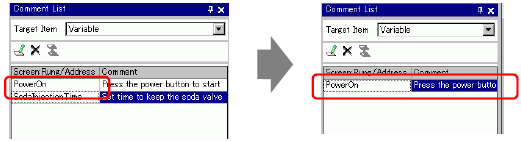

3. To edit a comment, select the comment and click .




   • You can edit the comment in the following ways.

   • Double-click the comment.

   • Right-click the comment and click [Delete (E)].

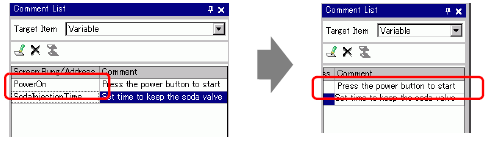

4. To delete the comment, select the comment and click .




   • You can delete the comment in the following ways.

   • Double-click the comment.

   • Right-click the comment and click [Delete].

   • Select the comment and press DELETE.

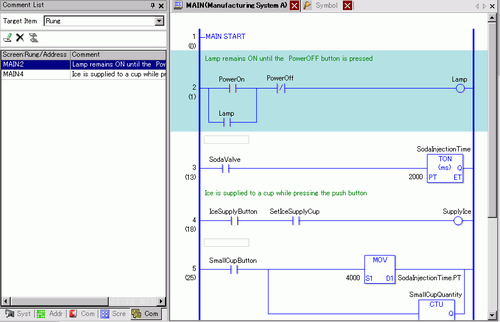

5. When [Target Item] is [Rung], double-click a cell in the [Screen Rung/Address] column to select the rung in the logic with the comment you want to delete.

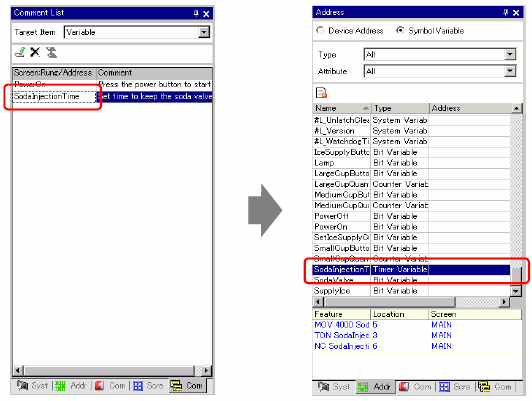

6. When [Target Item] is [Variable] or [System Variable], double-click the cell in the [Screen Rung/Address] column. This displays the [Address] window and selects the relevant symbol variable or system variable.

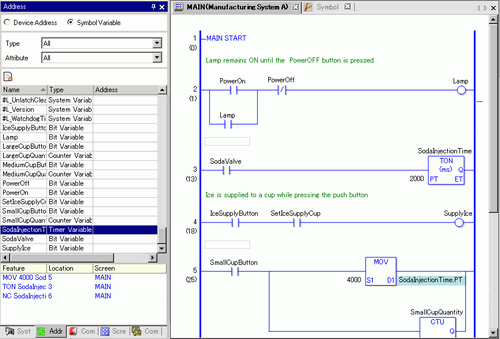

7. Select the lower part of the [Address] window to select the target variable on the logic screen.
