30.14.3.3 Address Refresh

Summary

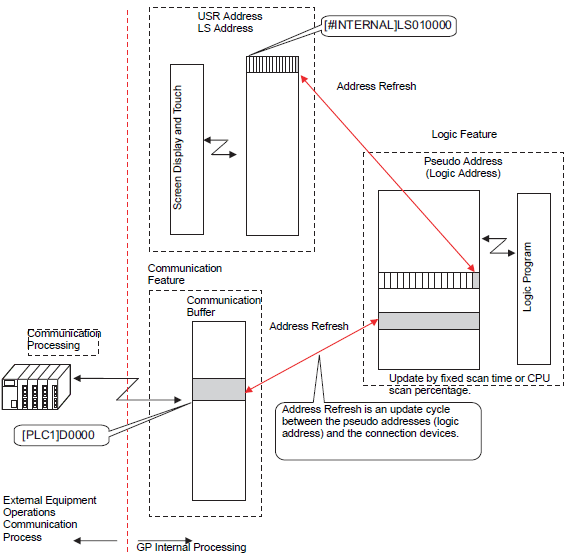

When device addresses are used in logic programs, pseudo addresses (logic addresses) of the logic features are allocated. The device addresses are updated periodically and logic programs are run through these allocated pseudo addresses.

Address Refresh is the method of updating the data between device addresses and pseudo addresses.

You can specify the update interval depending on the user system.

Setup Procedure

You can choose the address refresh update from fast, medium or slow.

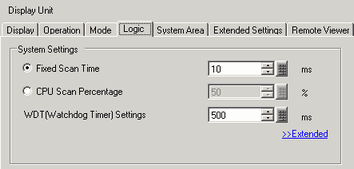

  1. From the [Project] menu, point to [System Settings], click [Display Unit] and open the [Logic] tab.

  2. From [System Settings], click [>>Extended].

  3. In [Address Refresh], select the speed.
