Explains the exported text screen's file name and file format.
File Name
When Input Multiple Languages is disabled
File Name: [file name]_[Text screen language*1].txt or csv
For example, alarm_ja-JP.txt
(export example of the Japanese text screen "alarm")
When Input Multiple Languages is enabled
File Name: [file name]_[language change feature's table number*2 (T*)]_[language change feature's table language*1].txt or csv
For example, alarm_T10ja-JP.txt
(export of the Japanese text screen "alarm_T10_ ja-JP.txt" using language change feature table no.10.)
When exported, the entire text except the extension will be recognized as a file name.
If you want to overwrite the file that was already exported, in the [file name] of the [Export Text Screen], enter the name used for the [file name] of the file you want to overwrite.
However, if the data you want to overwrite is already saved in a different language, it will be saved as a different file even with this method.
When a file is divided
If a CSV file exceeds 255 rows during export, a dialog box to confirm whether to divide the output file appears.
When dividing the file for export, the following naming convention will be used.
When Input Multiple Languages is disabled
[file name](assigned file number)_[Text Screen language].txt/csv
When Input Multiple Languages is enabled
[file name](assigned file number)_[language change feature table number]_[language change feature's language].txt / csv
*1 The following name is added to the file name for each language
Language |
Language Code |
Japanese |
ja-JP |
ASCII |
en-US |
Chinese (Traditional) |
zh-TW |
Chinese (Simplified) |
zh-CN |
Korean |
ko-KR |
Russian (Cyrillic) |
ru-ru |
Thai |
th-TH |
*2 The table number with the language change feature is [T+number] as follows.
Table Number |
File Name |
Table 1 |
T01 |
Table 2 |
T02 |
··· |
··· |
Table 16 |
T16 |
File Format
Exported file (*.txt or *.csv) format is as follows.
Changing the file format causes incorrect import.

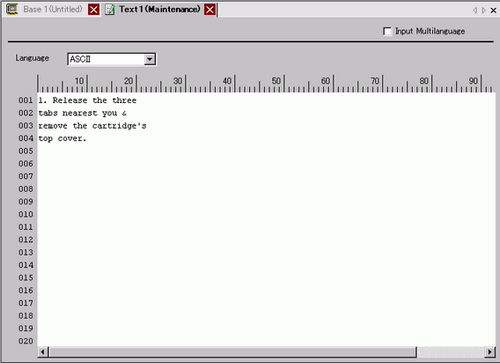

Text Registration Screen
TXT format (comma-deliminated)
#GP-Pro EX
#File Type,Text Data
#File Version,1.0
(Blank)
#START,1
#TITLE,maintenance
1 Release the three tabs
nearest you &
remove the cartridge's
top cover
#END
#GP-Pro EX
Header (required at import)
#File Type,Text Data
Header (required at import)
#File Version,1.0
Header (required at import)
(Blank)
blank line
#START,1
Text screen number (example:1) and contents start location
#TITLE,maintenance
comment name of text screen (for example, maintenance)
1 Release the three tabs ...cover
registered text in the text screen
#END
End of Text Screen contents
CSV format (comma-deliminated)
#GP-Pro EX
#File Type,Text Data
#File Version,1.0
(Blank)
1
"maintenance"
"1 Release the three tabs"
"nearest you &"
"remove the cartridge's"
"top cover"
GP-Pro EX
Header (required at import)
File Type,Text Data
Header (Necessary for import)
File Version,1.0
Header (required at import)
(Blank)
blank line
1
Text screen number (example:1) and contents start location
"maintenance"
comment name of text screen (for example, maintenance)
"1 Release the three tabs ...cover"
registered text in the text screen

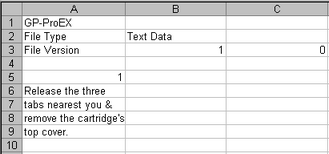

When the CSV file above is opened in Excel, it appears as follows.
