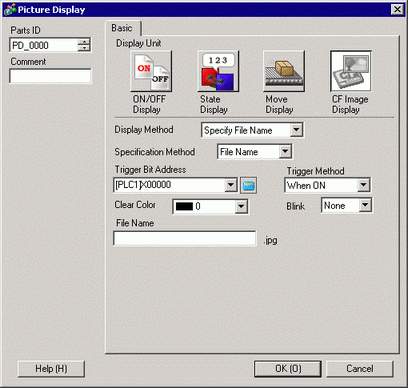

Display Method
Set the display method of files saved in a CF card/SD card.
Specify File Name
Specifies the file name of a JPEG file stored in a CF card/SD card and displays the image.
Specification Method
Set the method for specifying files saved in a CF card/SD card.
File Name
Use [File Name] to directly specify the file name and folder path of an image to display on the screen.
For more details, please refer to the following.
9.7.4 Restrictions for Picture Display (CF/SD Image Display)
Trigger Bit Address
Set the bit address which controls the image display.
Trigger Method
Set whether to display an image with the bit address ON or OFF.
Clear Color
Set the color when there is no image display.
Blink
Select the blink and blink speed.
Whether you can set Blink depends on the [Color] setting available when you click System Settings in the Project Menu, then click Display Unit and then open the [Display Settings] tab.
1.6 Supported Colors
File Name
Input an image file name to display.
