8.9 Creating Your Own Parts (Parts Registration)

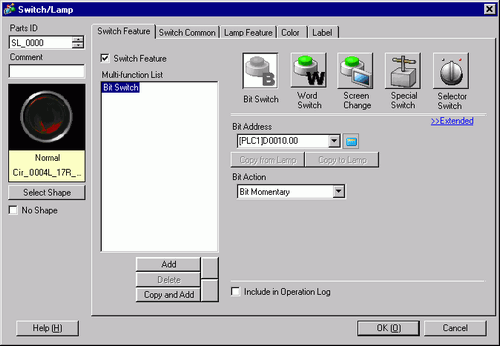

Double-click the part for which you want to register a new image, and the following dialog box will appear. Click [Select Shape]. (For example, switch)

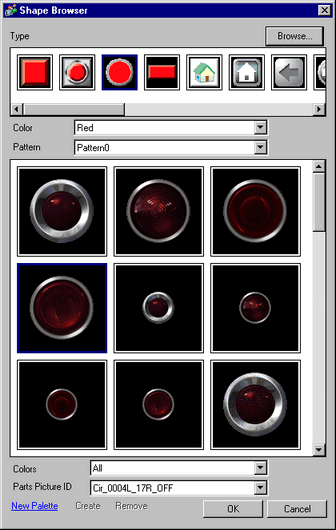

The [Shape Browser] dialog box will appear. Click [New Palette].

Depending on the shape of the part, clicking on [Select Shape] may open another dialog box called [Select State]. Choose the desired state and then click [Open] to open the [Shape Browser] dialog box.

The [Save As] dialog box will appear. Define the [Location (I)] and [File Name (N)] of the new part palette you and click [Save (S)].

When the following message appears, click [Yes (Y)].

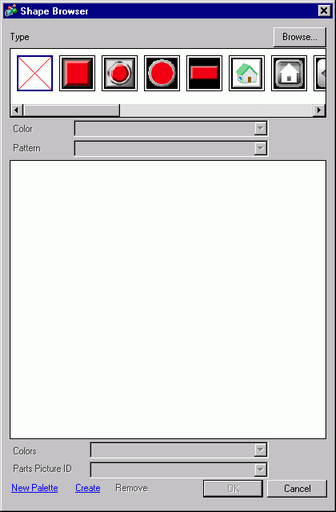

The newly registered [Shape Browser] dialog box will appear. Click [Create].

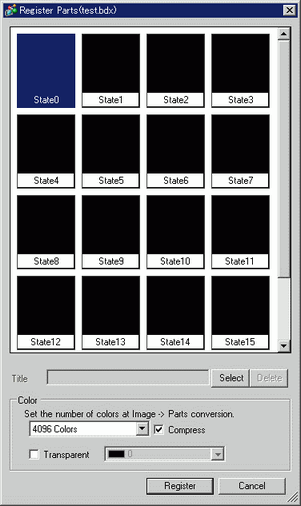

The [Register Part] dialog box will appear. Select [State 0], and click [Select].

When the [Open File] dialog box appears, navigate to the image location [Look In], select the [File Name], and click [Open].

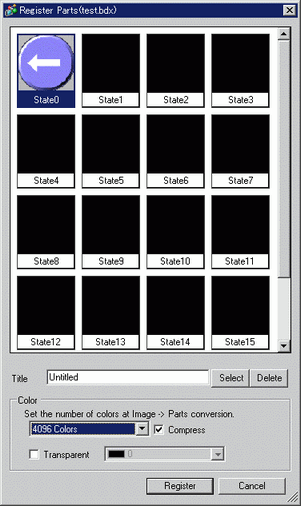

The image will be registered in the [Register Part] dialog box [State 0].

If necessary, set the part number and number of colors for the image to register in [Title] and [Color Settings], and click [Register], to complete the process.

The file name of original part being created is "*.bdx".
For Switch/Lamp or Key Parts, if you register an image for every state (State 0: While OFF, State 1: While ON, and so on), you can switch between images.
To select the registered image for the part, open the Parts dialog box and click [Select Shape]. In the [Shape Browser] dialog box, select the registered part image from [Select Shape]. Select the appropriate image and click [OK].
If you click [Create] while a previously registered part is selected, you can edit that part image. To create a new image, click [Create] while no previously registered part is selected.
You can register frequently used parts as a package.
