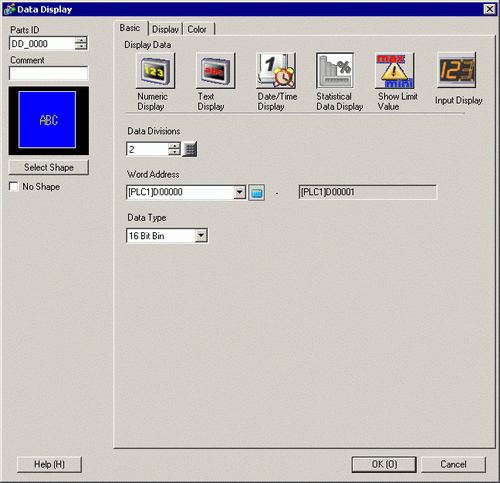

Data Divisions
Set the no. of Data shown in the Statistical Data Display. The setting range is from 2 to 16.
Word Address
Defines the initial word address for data in the Statistical Data Display. Data Divisions defines the number of consecutive word addresses from this word address displayed in the Statistical Data Display part. When using the Statistical Data Display with a Data Block Display Graph, the word address in this field corresponds to the graph's.
Data Type
Select the type of data to be displayed.
|
Bit Length |
Data Type |
|---|---|
|
16 bit |
Bin, BCD |
|
32 bit |
Bin, BCD, Float |
A single Statistical Data Display cannot combine data from different data types such as Bin, BCD, and Float.
