21.7.1 Visibility Animation Settings Guide

Set up Visibility Animation to show or hide objects.

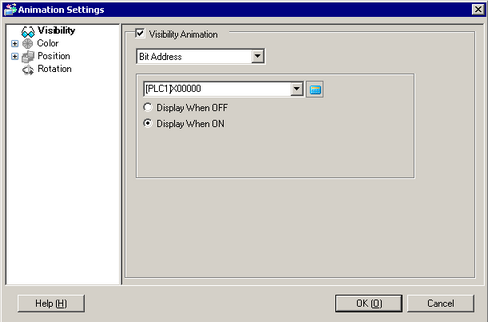

Visibility Animation

Adds Visibility Animation.

Bit Address

Visibility animation is based on the ON/OFF value of the specified bit address.

Display When OFF

The object is visible when the specified bit address is OFF.

Display When ON

The object is visible when the specified bit address is ON.

Security Level

The object is displayed only when you log on at a level equal to or higher than the defined security level.

Visible when level is greater than or equal to

Define the minimum security level required to view the object. Set a value between 1 and 15.

Bool Expression

Visibility animation is based on the ON/OFF value of the specified bool expression.

Click to open the [Bool Expression] dialog box, where you can specify an expression as a condition.

21.7.1.1 [Condition (ON/OFF)] Dialog Box Settings Guide

Display When OFF

The object is visible when the defined bit expression is OFF.

Display When ON

The object is visible when the defined bit expression is ON.
