1.5 Supported Features
Animation is a feature that enables you to temporarily hide or change the colors and positions of objects (parts and drawings). By using animation, you can highlight specific objects, enhance security, and create movement on the screen.
The following section lists models that support animation.1.5 Supported Features

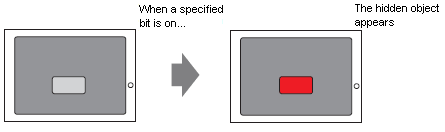

Show/Hide Objects (Visibility Animation)
You can hide an object and display it when necessary. You can use this as a security feature to hide objects that only specific users can operate.
For example:

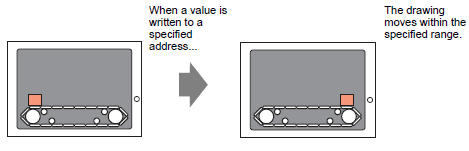

Change Object's Position (Position Animation)
You can move an object to show its new condition on the screen.
For example:

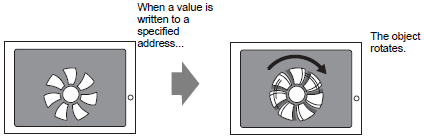

Rotate an Object (Rotation Animation)
By rotating objects, you can show the rotation of equipment such as a fan or motor, as well as the movement of a needle in a meter, to follow actual changes in value.
For example:

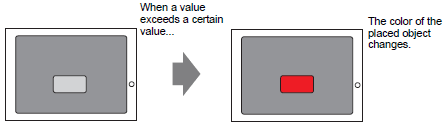

Change Object Colors (Color Animation)
You can change object colors at defined times. You can change object colors when its associated value exceeds the specified threshold. You can use this feature for alarms.
For example:
