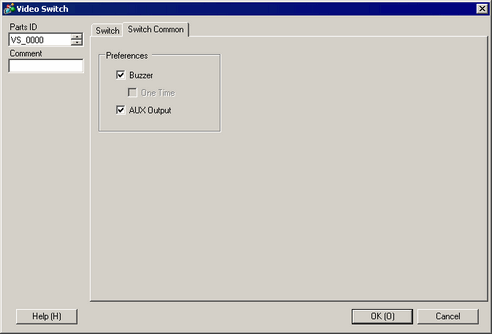

28.10.6.3 Switch Common

The following settings are common to bit and word switches.

Buzzer

Select whether or not to emit a buzzer.

One Shot

You can set the buzzer to sound continuously while the Momentary Switch is or to sound for just a moment. This can only be set when [Bit Momentary] is selected for [Bit Action].

AUX Output

Designate whether or not to sound the buzzer from a connected external device (speaker) when a switch is pressed.

Models that do not have an AUX interface cannot output the buzzer sound.
