Please refer to the Settings Guide for details.
10.15 Switch/Lamp Parts Settings Guide -
For details on how to draw parts, and defining the address, shape, color, and labels, please see the parts editing topic.
8.7.1 Editing Parts
Please refer to the Settings Guide for details.
10.15 Switch/Lamp Parts Settings Guide
For details on how to draw parts, and defining the address, shape, color, and labels, please see the parts editing topic.
8.7.1 Editing Parts
Create a Switch to write data "100" to a Word Address (D102), turn OFF a Bit Address (M100) and then return to the previous screen.
From the [Parts (P)] menu, point to [Switch Lamp (C)] and select [Word Switch (W)] or click
. Place the switch on the screen.
Double-click the placed Switch part. The following dialog box appears.
In [Select Shape], select the Switch shape.
From [Word Action] choose [Write Data].
Set [Constant] to "100" and word switch's function is complete.

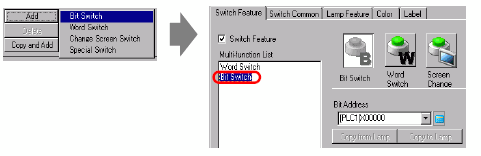

Click [Add] and select [Bit Switch].
When the screen changes to the bit switch settings, the bit switch is added to the display in [Multi-function List].
Specify the [Bit Address] (M100) that you want to turn OFF.
In [Bit Action], select [Bit Reset] and the bit switch feature settings are complete.
Click [Add] and select [Change Screen Switch].
When the screen changes to the Change Screen Switch settings, the Change Screen Switch is added to the display in [Multi-function List].
In [Screen Change Action], select [Previous Screen]. The Change Screen Switch settings are complete.
As needed, set the color and display text on the [Color] tab and [Label] tab, and click [OK].
Depending on the shape, you may not be able to change the color.
When you select a switch and press the [F2] key, you can directly edit the text on the label. When [Text Table] is selected, you can change the current Text Table.
