If there is not response to touching the switch for 3 seconds, you can create a switch with a bit address (M100) that is ON by touching the same switch one more time within 5 seconds.
On the [Parts (P)] menu, point to [Switch Lamp], and select [Bit Switch (B)], or click
to place a switch on the screen.
Double-click the placed Switch part. The following dialog box appears.
In [Select Shape], select the Switch shape.
From [Bit Action] choose [Bit Set].

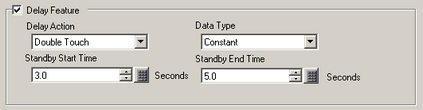

On the [Switch Common] tab, select the [Delay Feature] check box, and select [Double Touch] for the [Delay Action].
Select [Constant] from [Define Time]. Set [Standby Start Time] to 3.0 seconds and [Delay Time] to 5.0 seconds.
Click [Extended] and select the [Show In-Delay Status] check box.
On the [Color] tab, set [Select State] to [In Delay]. In [Display Color], set the color while in waiting for input and set [Blink] to [Medium].
Depending on the shape, you may not be able to change the color.
As needed, set the label that will display while in delay on the [Label] tab, and click [OK].
When you select a switch and press the [F2] key, you can directly edit the text on the label. When [Text Table] is selected, you can change the current Text Table.
