Create a switch to increment the value stored in a Word Address (D102) by 1 each time.
From the [Parts (P)] menu, point to [Switch Lamp (C)] and select [Word Switch (W)] or click
. Place the switch on the screen.

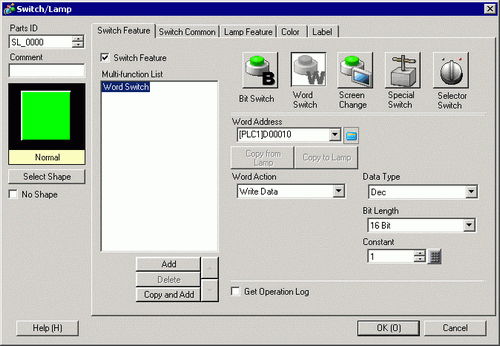

Double-click the placed Switch part. The following dialog box appears.
In [Select Shape], select the Switch shape.
In [Word Address], set the address(For example: D100)
From [Word Action] choose [Add Data].
In [Addition Base Word Address], set the address (D102) where the source data is stored, and input "1" in [Constant].
As needed, set the color and display text on the [Color] tab and [Label] tab, and click [OK].
Depending on the shape, you may not be able to change the color.
When you select a switch and press the [F2] key, you can directly edit the text on the label. When [Text Table] is selected, you can change the current Text Table.
