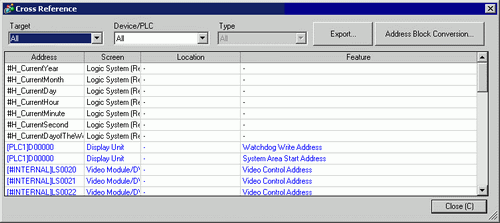

Displays the addresses used by screens and placed parts in a project.
Target
Select the items to be displayed in the cross reference from [All], [Current Screen], [Base Screen], [Window Screen], [Keypad Screen], [Image Unit Window Screen], [Header/Footer], [Logic Screen], [I/O Screen], [Alarm], [Sampling Settings], [Enhanced Recipe], [Recipe], [Security Settings], [Operation Log Settings], [Time Schedule Settings], [Sound], [Text Table], [Global D-Script], [Extended Script], [User-Defined Function], [Operation Log], [Change Backlight Color], [Global Function Settings], [System Settings], and [Clock Update Settings].
Items you can select differ between models.
Device/PLC
Select the contents to display on the Cross Reference from [All], [Symbol Variable], [PLC1] (device/PLC), [#INTERNAL] (internal device address), or [#MEMLINK] (only when using memory link).
Type
Select the address type to display, from [All], [Bit Address], [Word Address], [Bit Variable], [Integer Variable], [Float Variable], [Real Variable], [Timer Variable], [Counter Variable], [Date Variable], [Time Variable], [PID Variable], [System Variable (Bit)], or [System Variable (Integer)].
Items you can select differ between models.
Export
Output the list of addresses to a CSV or text file.
Address Block Conversion
Displays the [Address Block Conversion] dialog box. Converts the addresses specified in a project as a block. There are two conversion methods: [Whole Project], which converts the addresses in the whole project as a block, and [Individual Settings], which sets and converts the screens individually.
3.8.4.1 Utility - Address Block Conversion
Address
Displays the address or symbol name in use.
Screen
Displays the screen numbers, Alarms, Common Settings' types in use.
Location
Displays the part ID, the address group, the block number, or line number associated with where the address is used.
Feature
Displays the usage of each address.
