You can copy GP-4100 series screens only to other GP-4100 series projects.
-
Items that do not appear in the [Details] are not copied.

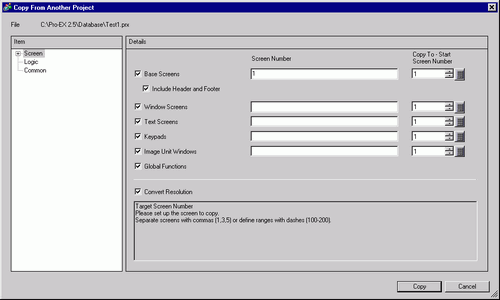

Specifies screens to copy from a different project file.
You can copy GP-4100 series screens only to other GP-4100 series projects.
Items that do not appear in the [Details] are not copied.
File
Displays the copy-from file.
Screen
Defines which screens to copy. Expand [Screen] to show more screen details.

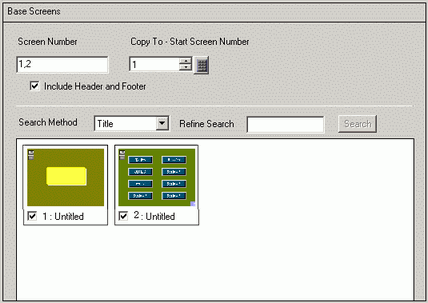

Base Screen
Copies Base Screens from another project.
Screen Number
Specifies which base screens to copy. Select the check box associated with each screen preview to add the screen ID to this field.
When the dialog box is displayed, all base screen numbers selected for the copy operation are listed here.
Copy-To Start Screen Number
Define which screen number to start copying the screens to, as a value from 1 to 9999.
Include Header and Footer
Set whether or not to copy the header/footer in another project file.
Search Method/Refine Search
Select the screen search method from [Title] or [Screen Number].
In the [Refine Search] field, define what to search for, with up to 128 single or double-byte characters.

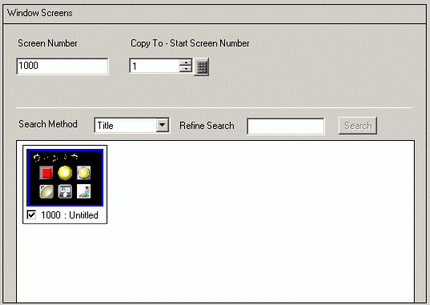

Window Screen
Copies Window Screens from another project.
Screen Number
Specifies which base screens to copy. Select the check box associated with each screen preview to add the screen ID to this field.
When the dialog box is displayed, all window screen numbers selected for the copy operation are listed here.
Copy-To Start Screen Number
Define which screen number to start copying the screens to, as a value from 1 to 2000.
Search Method/Refine Search
Select the screen search method from [Title] or [Screen Number].
In the [Refine Search] field, define what to search for, with up to 128 single or double-byte characters.

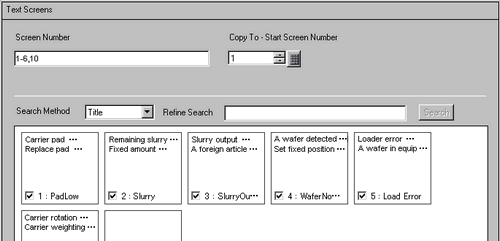

Text Screens
Copy text screen of the other project file.
Screen Number
Specifies the number of the text screens to copy. Select the check box associated with each screen preview to add the screen ID to this field.
When the dialog box is displayed, all text screen numbers selected for the copy operation are listed here.
Copy-To Start Screen Number
Define which screen number to start copying the screens to, as a value from 1 to 8999.
Search Method/Refine Search
Select the screen search method from [Title] or [Screen Number].
In the [Refine Search] field, define what to search for, with up to 128 single or double-byte characters.

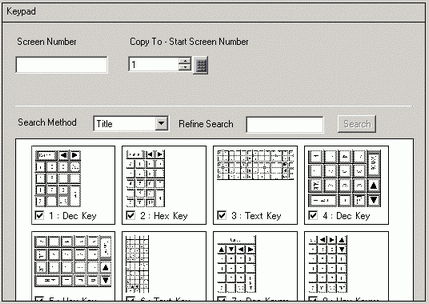

Keypad
Copies the keypad screen from another project.
Screen Number
Specifies which base screens to copy. Select the check box associated with each screen preview to add the screen ID to this field.
When the dialog box is displayed, all window screen numbers selected for the copy operation are listed here.
Copy-To Start Screen Number
Define which screen number to start copying the screens to, as a value from 1 to 8999.
Search Method/Refine Search
Select the screen search method from [Title] or [Screen Number].
In the [Refine Search] field, define what to search for, with up to 128 single or double-byte characters.

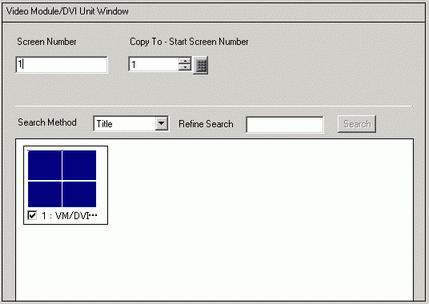

Image Unit Window
Copies the image unit window from another project.
Screen Number
Specifies the number of the image unit windows to copy. Select the check box associated with each screen preview to add the screen ID to this field.
When the dialog box is displayed, all image unit window numbers selected for the copy operation are listed here.
Copy-To Start Screen Number
Define which image unit window number to start copying the screens to, as a value from 1 to 512.
Search Method/Refine Search
Select the screen search method from [Title] or [Screen Number].
In the [Refine Search] field, define what to search for, with up to 128 single or double-byte characters.
Global Functions
Copies the global functions from another project.
Convert Resolution
When the resolution differs before and after conversion, specify whether to adjust the resolution automatically.
Logic
Copy [Logic Screen] and [I/O Screen] from another project.
Common Settings
Copy [Alarm], [Sampling], [Global D-Script], [Extended Script], [User Defined Functions], [Text], and [Start Screen] from another project.
Alarm/Sampling/Global D-Script/Extended Script/User-Defined Functions
Enable
Replace with the Copy From project settings.
Disable
Adds settings from other projects (Copy From) to the currently opened project (Copy To).
If the same ID exists in the open project and another project, it will be replaced with the setting of the other project's (copy from) setting.
Start Screen
Placing a checkmark replaces it with the Start Screen for other projects ( Copy From).
Depending on the connection device, when [Copy from another Project] is performed, address settings may become undefined. After copying from another project, check all device addresses and if there are undefined addresses, correct the settings with the appropriate addresses.

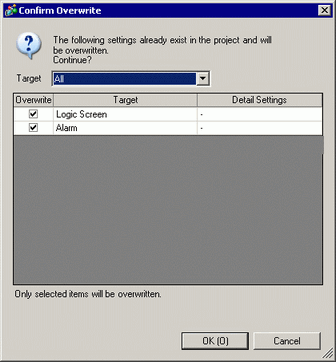

Confirm Overwrite
When the copy-to destinations already exist in the project, you may need to confirm overwriting the data.
Window Type
Select the screens to be displayed from [All], [Base Screens], [Window Screens], [Text Screens], [Keypads], [Image Unit Windows], [Global Functions], [Logic Screens], [I/O Screens], [Alarm], [Sampling], [Global D-Script], [Extended Script], [User-Defined Function], and [Start Screen Settings].
Overwrite
If the same screen number or ID exists in the open project (copy to) and another project (copy from), it will be displayed in the list.
When you select [Disable] in the Common Settings and the same ID exists in the open project and another project, it will be shown in the list. When you select the [Overwrite] check box and click [OK], the current project's (copy to) settings are overwritten with the other project's (copy from) settings. When you do not select [Overwrite] and click [OK], the current project's (copy to) settings are not overwritten by the other project's settings.
Target
Display the item that already exists and may be overwritten.
Even if alarms are not set up on the source project, [Alarm] may appear as one of the copy items.
[Alarm] is listed if you viewed the [Common Settings (Alarm)] even just one time.
Detail Settings
Display the screen number or screen title for the item that already exists and may be overwritten.
