3.9.1 Restrictions for Screen Display

• When you change the display unit orientation from landscape to portrait, you can rotate the screen drawings as described below. From the [Edit] menu, select [Rotate/Flip] to edit. Be sure to check the screen after the change.

• For display units other than GP-4100 series, rotate 270 degrees


• For GP-4100 series rotate 90 degrees


• If you change from a high resolution display type to a low resolution display type, the data that exceeds the range is not displayed. If you change back to a high resolution display type, the data that exceeded the range is displayed.
  The maximum number of display characters on a part differs between a low resolution display type and a high resolution display type. If you create an alarm message on a high resolution display unit, then change to a low resolution display unit, any part of the message that does not fit on the screen will not appear.

• If you convert resolution, the part size, position, and the text size to the display resolution is adjusted automatically. Some scale magnification may not convert properly due to text size and resolution limitations.

• When you reduce the screen edit area with the zoom function, some drawings may not display correctly, depending on the magnification.

• The screen image displayed in the editor may not appear exactly as the screen on the display unit. Before transferring, please check the screen image using Simulation.

• When drawing with the [Orientation] set to [Portrait], the following features display in a different position compared to when [Orientation] is [Landscape]. The difference is due to how the coordinates are calculated on the display unit and the coordinates on the screen editor.

• Picture Display when using [Move Display]

• Window when [Window] part's [Window Type]=[Word Action] and [Window Specification]=[Address]

• Global Window when you click the [System Settings], select [Display Unit], and in the [Mode] tab, [Global Window Operation]=[Indirect]

• Trigger Action when using [Draw Action]

• Image Unit Display when its [Video Layout]=[Indirect]

• Script when using the [Draw] functions

• Internal device when using the areas for getting the touch coordinates (LS9235 to LS9237)

When using these functions with [Portrait] orientation, please use the display unit coordinates as in the following diagrams.

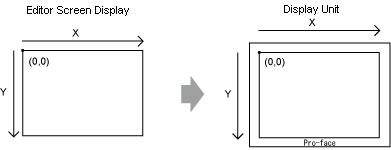

[Orientation]=[Landscape]

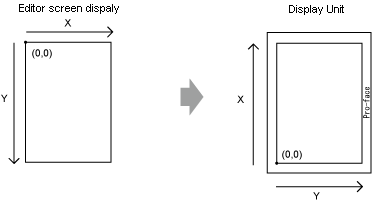

When [Orientation]=[Portrait] on display units other than GP-4100 series

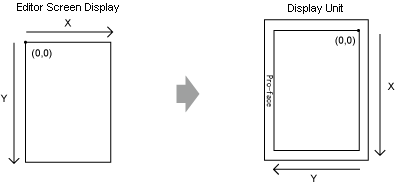

When [Orientation]=[Portrait] on GP-4100 series
