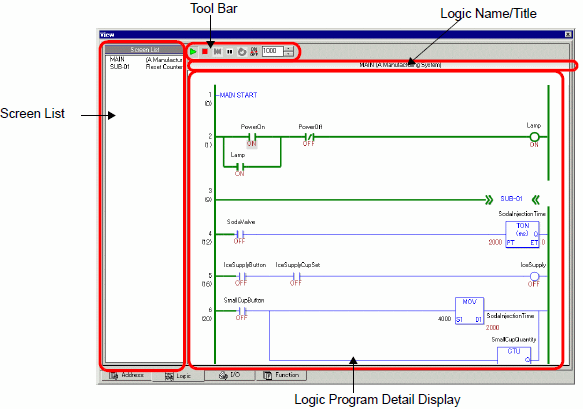

Screen List
Displays the list of the logic names/titles of the logic programs created in the current edited project file. Double-click to display the logic program in the Logic Program Detail Display area.
Toolbar
Runs the logic program.
Stops the logic program.
Resets the logic program.
Pauses the logic program.
Executes one scan of the logic.
Enables/Disables the forced change.
Specifies the logic program's detailed display area's update rate.
Logic Name/Title
The logic names and titles of the logic programs displayed on the logic program display area will be displayed.
Logic Program Detail Display Area
Results of the simulation of the logic program selected in the Screen List are displayed. Green lines show the operating status.
You can check/change ON/OFF and the current values of the symbol variables.
