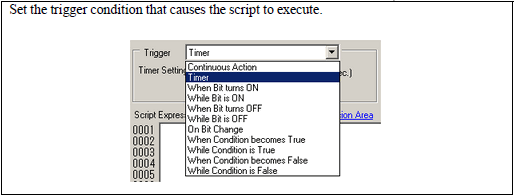

For more information about this function, please refer to 22.8 Trigger Condition Setup.

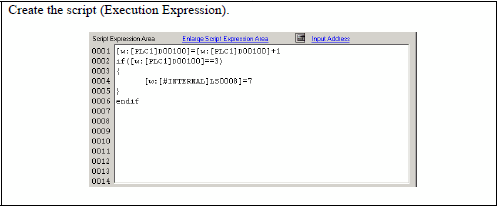

For information about commands and functions, see 22.11 Built-In Function (Instruction) / Conditional Expressions.
For more information about this function, please refer to 22.8 Trigger Condition Setup.
For information about commands and functions, see 22.11 Built-In Function (Instruction) / Conditional Expressions.

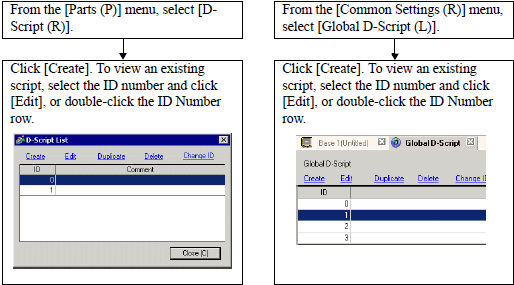

The component tray displays registered D-scripts in the order they are created. to change the order of D-script parts in the component tray, change the ID number for registered parts, then from the [Edit] menu select [Auto-Align Trays]. You can change ID settings by double-clicking parts in the component tray to display the edit dialog box.
