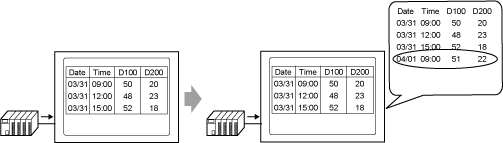

Data is displayed on a Sampling Data Display on the screen of display unit every time sampling occurs.
Display behavior changes depending on the [Display Order] in the [Display Settings] tab of the Sampling Data Display.
When the [Display Order] is [Descending]
The last sampled data always displays on the first line. When new data is sampled, old data moves down in order.
When performing scrolling or searching/sorting operations, new sampled data will not display. Press the [Update] switch to return to the display of new sampled data.
When the [Display Order] is [Ascending]
The first sampled data displays on the first line. New sampled data is added to the last line. When the sample data exceeds the [Display Rows] in the [Basic Settings] tab, the new data will not display. You can verify the new data by scrolling down the display data.
If the [Overwrite old data after finishing the specified number of cycles] check box is not selected in the Mode tab, only the sampling data from the block number stored in the [Block Number Storage Address] will be displayed. When the last data from the block is displayed, the display will not be updated again.

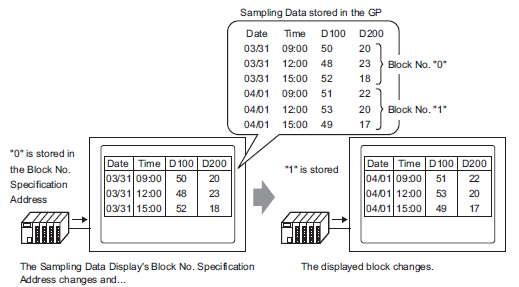

To display another block's data, change the value in the [Block Completed Bit Address] and the display will change.
If a block number that does not exist is specified, data will not be displayed.
