For models supporting SD cards, "SD"/"SD Card" is displayed instead of "CF"/"CF Card".

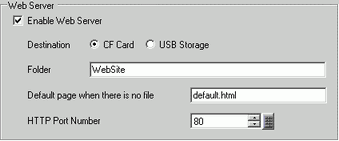

Enable Web Server
Defines whether or not GP data is made available using a Web page.
Destination
Select either [CF Card] (or [SD Card] or [USB Storage] as the destination of the standard HTML template.
Folder
Defines the external storage folder path, up to 90 single-byte characters long, to share on the Web server.

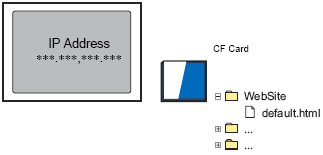

If you define the folder as "WebSite", and enter the address "http://ip_address/default.html" in Internet Explorer, it loads the Web page "WebSite\default.html" from external storage.
For example, referencing the "Website" folder on the CF card
You can specify only a single folder as the Web Server's root folder.
Slashes ("/" or "\") at the end of paths are automatically deleted when saving. Except in the case when the slash ("/" or "\") is the only character in the path.
Default page when there is no file name
Defines the default file to display when no file name is defined in the http path. The maximum file name length is 90 single-byte characters.
For example, when this property is set to "default.html", when you type "http://ip_address" into Internet Explorer's address bar, you are actually accessing "http://ip_address/default.html".
When defining the [Folder] and [Default page when there is no file name] fields, do not exceed 90 single-byte characters, combined.
HTTP Port Number
Set the Web-Server port number: 1 to 65535.
For most applications, use port number 80.
However, if 80 is not available because of the firewall or other issues, you may need to change the port number.
As the number of available ports is limited by the firewall, please confirm with your firewall settings.
