Please refer to the Settings Guide for details.
23.10.1 Common Settings (Security Settings) Settings Guide
Please refer to the Settings Guide for details.
23.10.1 Common Settings (Security Settings) Settings Guide
Set up security level 15 and password "5555" for maintenance staff. Set up security level 1 and password "1111" for status monitoring staff.
Security level 0 means no security is set.
From the [Common Settings (R)] menu, point to [Security (Q)] and select [Security Password (P)], or from the toolbar click
.
Password setting screen will open. Select the [Enable Security Function] check box and type password "1111" for [Level 1], and password "5555" for [Level 15].
Each password should be 8 single-byte characters or less.

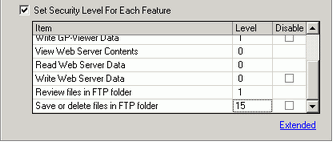

Next, select the [Set up Functions at Each Security Level] check box and define the security level set in the above procedure 2 for each [Item]. (For example, [Review files in FTP folder] = Level 1, [Save or delete files in FTP folder] = Level "15")
If you select Disable, the function cannot be performed regardless of the security level.
After selecting Disable, if you want to change it to Enable, modify the project file with drawing software and then transfer it again. You cannot change it to Enable from offline mode.
