37.7.1 Web Server

Summary

The Web Server makes alarms and device addresses available for display in Internet Explorer. You can also access files on an external storage device, allowing for simple maintenance tasks.

To use this feature, the computer and display unit must be on the same network, and in the GP-Pro EX Remote Viewer settings, the [Web Server] group's [Enable Web Server] check box must be selected.

Models

For a list of the display unit models that support Web Server, see the following.

1.5 Supported Features

License

This feature does not require a license.

The CD-ROM or DVD-ROM for GP-Pro EX version 2.10 or later comes standard with Web Contents. You can use Web Contents by downloading it to the display unit, and using a computer attached to the same network to view the web contents on the display unit.

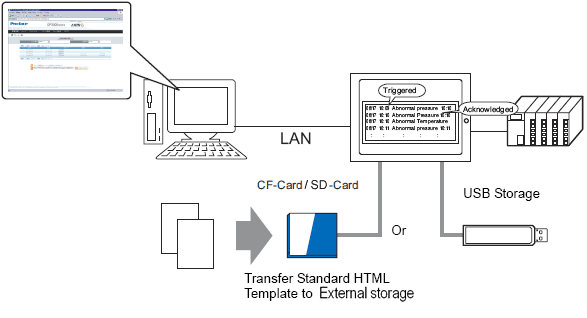

Full Configuration

The following describes the layout of connections and options when using the Web Server.
