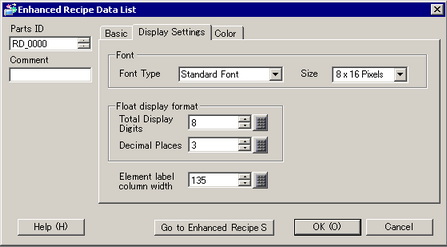

Font
The area groups the text's font settings.
Font Type
Choose a font type displayed on the Enhanced Recipe Data List from [Standard Font] and [Stroke Font].
Standard Font
This is a bitmap font. Choose the character height and width magnification ratio. When you magnify/shrink characters, the outline may become rough or the letters may appear compressed.
Stroke Font
This is an outline font in which the ratio of the character height/width is fixed. The letters will have a smooth outline even if you magnify/shrink them. However, this font uses more disk space on the display unit.
Size
Select a font size displayed on the Enhanced Recipe Data List.
Standard Font
Specify "Width x Height" between [8 x 8] to [64 x 128] in 8 pixel units.
For single-byte characters, select a fixed size from [6 x 10], [8 x 13], [13 x 23].
Stroke Font
6 to 127 pixels
Float display format
Set the display format for data format [32 bit Float] for element values displayed on the Enhanced Recipe Data List.
Total Display Digits
Select the number of display digits for the element value from 1 to 17. The numbers displayed after the decimal point are also included in the number of digits. However, the decimal point is not included in the display digits.
Set the total display digits so that these digits exceed the [Min] digits set in [Element] list.
If these digits are less than the [Min] digits, you cannot edit element values on the Enhanced Recipe Data List.
Decimal Places
Set the number of digits following the display decimal point to between 0 and 16.
When the Total Display Digits is 5, and the Number of Decimal Places is 2, it will look as follows:
Element label column width
Set the width of the element label from 0 to 274. The default width is the same for element labels and element values.
How to Calculate the Column Width
Element label's column width = (width of the Enhanced Recipe Data List, minus the outer frame's ruled line 4 dots, minus the width of the separator line 2 dots) divided by 2
Decimal places are truncated at the calculated width column.
Pressing the [Shift] key + up/down/left/right arrow key changes the size of the Enhanced Recipe Data List in 1 pixel increments.
The minimum size of the list is 20 x 40 pixels (height x width).
Changing the size of the list does not affect the [Element label column width].
Go to Enhanced Recipe Settings
Closes the [Enhanced Recipe Data List] dialog box and opens the [Enhanced Recipe Group List] tab.
