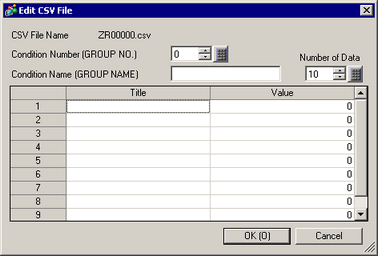

Condition Number (GROUP NO)
Set the condition number. The setting range is from 0 to 1023.
Condition Name (GROUP NAME)
Set the condition name with a maximum of 32 characters. When a Special Data Display [Data Transmission] is used, the condition name set here displays.
Number of Data Items
Set the number of recipe data from 1 to 10000.
Edit Data Area
Enter the recipe title and data. The title set here is not transferred to the device/PLC.
The shortcut key or right-click menu can edit the list.
|
Names of features |
Shortcut |
Description |
|
Copy |
Ctrl + C |
Copies the contents of the currently selected cell. |
|
Paste |
Ctrl + V |
Pastes the copied contents into the selected cell. |
|
Clear |
Delete |
Deletes the contents of the currently selected cell. |
|
Select All |
Ctrl + A |
Select all cells in [Edit Data Area]. |
