To display data in a Special Data Display [Show CSV], you need a Special Data Display [File Manager] to select files to display. Display the CSV data on the CF card.
A Special Data Display [File Manager] appears using a Special Window or Local Window. If the maximum number of windows are already displayed, the File Manager does not appear. Close another window and touch the [File Manager] display switch again.
12.9 Displaying Multiple Windows on a Single Screen

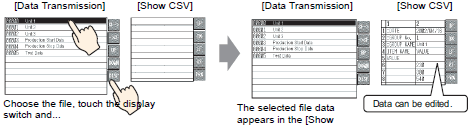

Only when displaying Recipe CSV data, can you select a file in a Special Data Display [Data Transmission] instead of [File Manager].
CSV Data Display Method

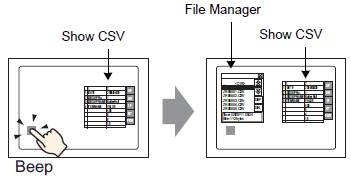

Touch the File Manager Display Switch to call up [File Manager] on the display unit screen.
If you touch the display switch again, [File Manager] will close.

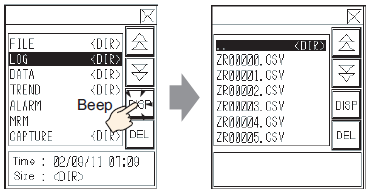

Selecting the folder and touching the [DISP] key displays a list of all the files in the folder.
To navigate to a higher hierarchical folder, select the [..<DIR>] row then touch the [DISP] key.
Select a file, and then touch the [DISP] key to view the file in the [Show CSV] dialog box.
In the [File Manager], if you select files that are not CSV files and then touch the [DISP] key, those files do not appear in the [Show CSV] part.
If the CF Card is removed or the cover of the CF Card slot is opened while the CSV file displays, the [Show CSV] dialog box is cleared.
Switching screens clears the [Show CSV] display.
The screen position of Special Data Display [File Manager] can be changed.
If the [File Manager] Display runs off the screen at a specified position, the coordinates adjust so that the entire window displays.
Display units with analog touch panels
Touch the top of the [File Manager].
Touch the desired position on the screen where you want the display to move.
The [File Manager] moves to the specified location.
Display units with matrix touch panel (2-point touch)
Touch the top of [File Manager] for the first point.
Touching the second point moves [File Manager] to that point.
If you touch another switch with the first point, move [File Manager] with one-point touch.
Touch the top of [File Manager] for the second point.
Release the second touch and touch the position on the screen to where you want to move [File Manager].
The [File Manager] moves to the specified location.
