26.22.2 Operation - Searching and Sorting Enhanced Recipe Data

Refine Search

1. In the Enhanced Recipe List, touch the first row (area excluding triangles (, and). Refine Search Keyword is displayed.


2.

   • If you use both refine search and sort at the same time, either [Refine Search Keyword & A->Z] or [Refine Search Keyword & Z->A] is displayed.

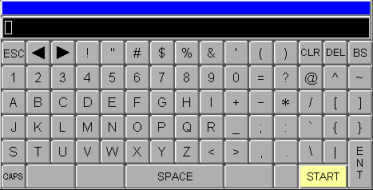

3. When the keypad appears, enter the word to search for and touch [START].




   • This is the same keypad as when searching or sorting in the Alarm part. For more details, please refer to the following.
     20.10.3 Entering Search Conditions

   • Even if recipe labels are displayed in a language other than Japanese/English, the keypad is in English.

   • The maximum number of characters you can enter as your search criteria is 50 single-byte characters (or 25 double-byte characters).

4. The search results appear.



   • To cancel only refine search, touch the first row again to display the keypad and touch the [CLR] key to delete the search keyword. While refine search is being canceled, the first row displays [Processing], and recipe labels and triangles for sorting are hidden.

   • The following operations cancel the refine search.

   • Touch the [Clear All] switch.

   • Changing recipe labels or element labels to other languages

   • Changing the security level for element values on the Enhanced Recipe Data List

   • Screen Change

Sort

1. Touch triangles on the first row in the Enhanced Recipe List.


2. Each touch changes the sort order of the display, from recipe ID, to ascending order, to descending order, and back to sort by recipe ID.




   • While recipe labels are being sorted, the first row shows [Processing] and recipe labels and triangles for sorting are hidden.

   • When sorting a refined search, only recipe labels displayed after the search are sorted. To target all recipe labels in a sort, first cancel the refine search.

   • Recipe labels with the same name display in ascending recipe ID order.

   • Recipe labels set up with a security level for data editing do not appear.

   • The following actions cancel sorting, and the order of recipe labels displayed returns to the value set in [Default Sort Order (#H_RecipeLabelSortType)].

   • Touch the [Clear All] switch.

   • Changing language of recipe labels or element labels

   • Changing the security level for element values on the Enhanced Recipe Data List

   • Changing screens
