Check whether the logic program is operating properly on the display unit, or check the instructions in the logic program. You can also check whether the logic program is operating properly and view a list of the variable names used in the logic program and their current values.
The entire logic program is monitored. You can use Logic Monitor to check the status of the program operation and the variables used in the instruction.
Transfer the logic program (project file) to the display unit.

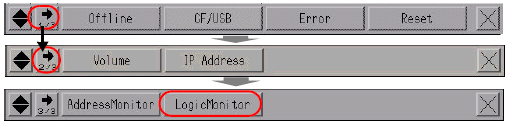

Touch either the upper right corner and then the lower left corner, or the upper left corner and then the lower right corner on the panel to display the offline system menu. Touch the [Logic Monitor] switch from the third menu.

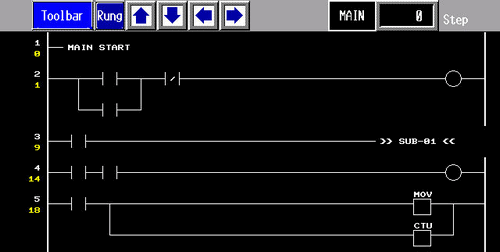

When the [Logic Monitor] switch is touched, the following screen appears. You can check whether the transferred logic program is operating properly.

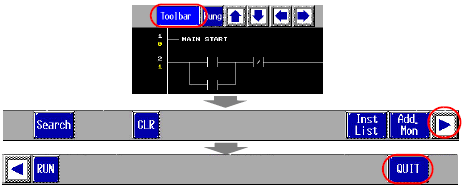

Exit the Logic Monitor. [Toolbar]: Touch the button then touch .
[Quit] returns to the RUN screen.
The variables used in the logic program are monitored. The name and current value of the variable can be checked. When [Address Format] is used in the logic program, the addresses and current values can be checked.
Even when the model does not support a logic program or when a logic program is not used, Address Monitor is available as long as the variables for the symbol variable are registered.

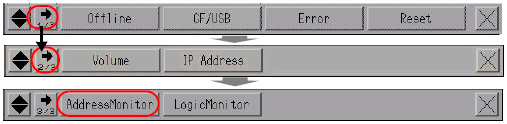

Touch either the upper right corner and then the lower left corner, or the upper left corner and then the lower right corner on the panel to display the offline system menu. Touch the [Address Monitor] switch from the third menu.

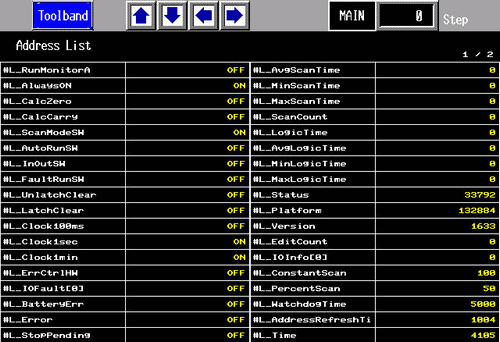

The following screen appears, showing the names of the variables specified in the transferred project file as well as their current values.

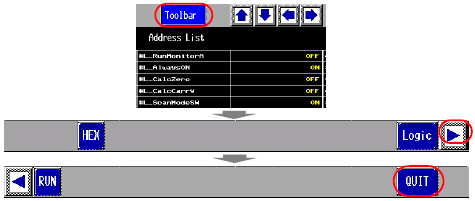

Exit the Address Monitor. [Toolbar]: Touch the button then touch .
[Quit] returns to the RUN screen.
