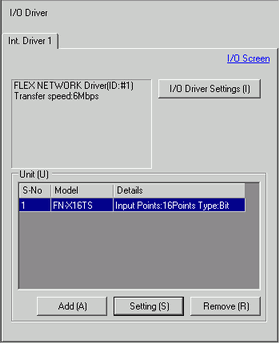

When using the AGP-XXXXX-FN1M display unit, in the System Settings click [I/O Driver] to display the following window.
I/O Driver Settings
This button displays the [I/O Driver Settings] dialog box.
Transmission Speed
Select the communication speed for FLEX NETWORK as either [6Mbps] or [12Mbps].
Add
Adds I/O units.
Setting
Click the button. The [Unit Settings] dialog box appears.
Use the dialog box to select your I/O unit and define I/O details.
Remove
Deletes I/O units.
I/O Screen
Click the button to switch to the I/O screen.
