Since the Generic(AIO) type is fix to word, there are no detailed settings for the unit.
Since the Generic(AIO) type is fix to word, there are no detailed settings for the unit.

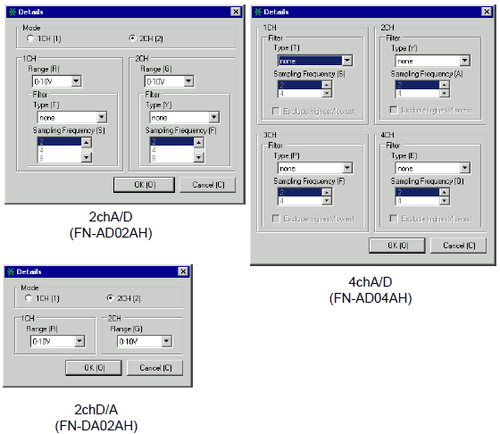

Mode
Select [2CH] or [1CH] in the 2-channel analog unit.
Range
Set the range in the 2-channel analog unit.
0-10V: 0 to 4095
0-20mA: 0 to 4095
4-20mA: 0 to 4095
The range of the 4-channel analog unit is set in the display unit.
0-5V: 0 to 4095
1-5V: 0 to 4095
0-10V: 0 to 4095
-5-5V: -2047 to 2047
-10-10V: -2047 to 2047
0-20mA: 0 to 4095
4-20mA: 0 to 4095
Type
Select the filter type.
2-channel analog
None, Moving Average
4-channel analog
None, Average, Moving Average
For details on filter, refer to Section 2.4 Analog/Digital Conversion, in the "FLEX NETWORK Analog Unit User Manual".
Sampling Frequency
Select the number of samples for A/D conversion. When the filter type is set to [None], this option can be selected.
2-channel analog
2/4/8/16/32/64
4-channel analog
2/4/8/16/32/64/128/256/512/1024/2048/4096/8192/16384/32768/65536
Exclude highest/lowest
Specify whether to remove the maximum and minimum values in the sample data. This option can be selected if the number of samples for A/D conversion is set to 4 or higher.
