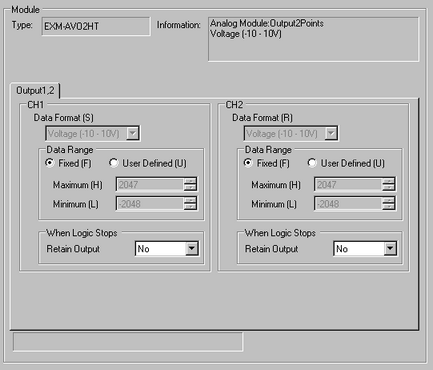

Output (CH1 to CH2)
Configures settings for module analog output terminals.
Data Format
Displays [Voltage (-10 - 10V)].
Fixed
The analog values in the voltage and current output settings appear within the range of -2048 to 2047 as shown below.
User Defined (Maximum/Minimum)
The analog values in the voltage and current output settings appear within the range of [Maximum] and [Minimum] settings. The available values are as follows.
Upper limit: minimum to 32767
Minimum: -32768 to maximum
Retain Output
Select whether or not you want to retain output values when the logic is stopped. Select [Enable] to retain output values even if the logic stops.
