Inputs (CH1 to CH8)

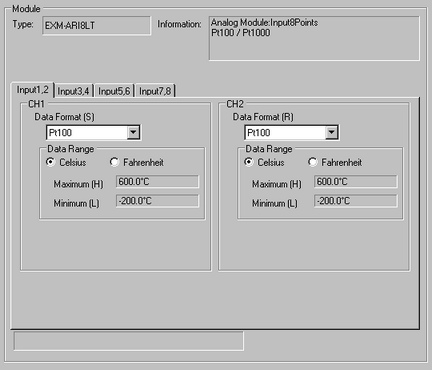

Configure the module's analog input terminal settings.
Data Format
Choose the data type from [Disable], [Pt100] or [Pt1000].
When [Data Format] is set to [Disable], values in the [Data Range Settings] will be set to defaults.
Pt100 Celsius/Fahrenheit
The temperature range of PT100 is shown below.
Celsius
The displayed value (-2000 to 6000) is 10 times the input value ranging from -200.0°C to 600.0°C.
Fahrenheit
The displayed value (-3280 to 11120) is 10 times the input value (-328.0°F to 1112.0°F).
Pt1000 Celsius/Fahrenheit
The temperature range of PT1000 is shown below.
Celsius
The displayed value (-500 to 2000) is 10 times the input value ranging from -50.0°C to 200.0°C.
Fahrenheit
The displayed value (-580 to 3920) is 10 times the input value (-58.0°F to 392.0°F).
