You can change a ladder instruction you created to another instruction in the same ladder instruction group.
For groups of ladder instructions that can be changed, refer to the following.
30.5.6.1 Ladder instruction groups that can change
Here, as an example, the NC ladder instruction (Normally closed) on the second rung is changed to NO ladder instruction (Normally open).
You can change ladder instructions using the following two methods.
Ladder Instructions
Select the ladder instruction to change by clicking the ladder instruction icon from the ladder instruction toolbar.
You can only click ladder instruction icons that can change.
Ladder instruction icons that are not displayed in the ladder instructions can be displayed by customizing.
30.14.9 Toolbar Customization
Right-click

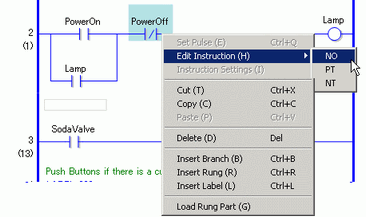

Right-click the ladder instruction, select [Edit Instruction (H)], and then select the desired ladder instruction.
The ladder instruction will be changed.
