You can add comments to each rung in a logic program.

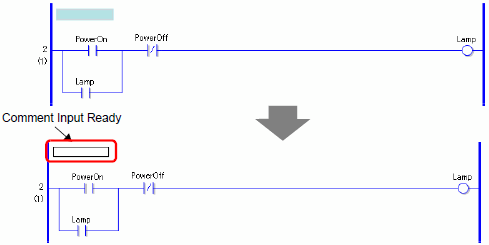

Double-click the part for rung comments. The comment input box will be displayed.
To input comments, right-click the rung comment portion and then click [Delete (E)].
Enter the rung comment in the text box. Up to 128 characters long.
Press SHIFT+ENTER to insert a line feed.

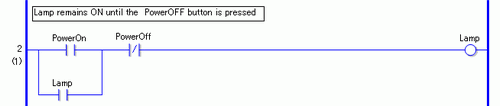

Press ENTER to input the text. The rung comment has been input.
You can also add and change rung comments in [Properties].
30.14.5 Using Reference Features to Search Logic Programs
You can display a list of rung comments and edit the comments in the [Comment List] window.
30.7.4 [Comment List] Window
Define the number of rung comments you can have in the project in the [Project Information] dialog box, [Logic Memory] area. Do not store comments that exceed the number set in [Logic Memory].
30.14.2 Checking the Size for Creating Programs
You cannot edit the rung comments during online monitoring.
You can add rung comments to rungs and normal labels. You cannot add them to start and end labels.
