The MOV and MOVP instructions are transfer instructions. When the MOV instruction is executed, the value in S1 is stored in D1.
The MOV and MOVP instructions always pass power. When using the MOV and MOVP instructions, if the variables specified in operands S1 and D1 are not the same type, an error will occur. Designate the same variable type in all operands S1 and D1.
Refer to the following for specifying a constant.
When operand D1 is an integer variable
When operand D1 is an integer variable and you want to input hexadecimal values in operand S1
When 0x (zero and lower case "x") is input, the following values become hexadecimal values.
When operand D1 is a float variable
When 0f (zero and lower case "f") is input, the following values are interpreted as float values.
When operand D1 is a real variable
When 0r (zero and lower case "r") is input, the following values are interpreted as real values.

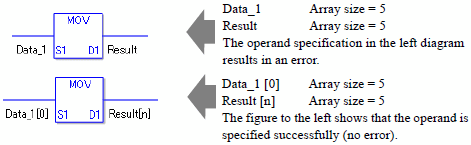

When Transferring Data in a Specified Array (Integer Variable Array)
Specify the array using Data [0] or Data [N] (N indicates an integer variable).
When operands S1 and D1 specify the entire array, an error will occur even if the specified variables are the same type.
