Select this when using multiple bit addresses.

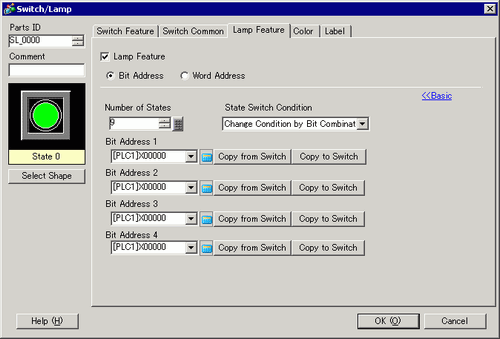

Number of States
Define the number of Lamp color states. Each [State Switch Condition] has a different setting range.
For [Change state by bit combination]: 2 to 16
For [Change state by bit]: 3 to 5
To set 4 colors for one lamp, the number of states is 4.
State Switch Condition
Using four bit devices, one lamp displays the combination of the bit addresses' ON (1)/OFF (0) states with different colors.
Change state by bit
The color of the lamp is changed according to the ON/OFF state of the individual four bit addresses.
13.3 Turning Multiple Bits ON/OFF (Up to 5 States)
Change state by bit combination
The color of the lamp is changed according to the combination of the ON/OFF states of the four bit addresses.
13.4 Changing Multiple Bits (Up to 16 States)
This setting is disabled when [Number of States] is 2 or less.
Bit Address
Specify the bit address to turn ON/OFF the lamp.
The number of addresses to set differs according to the specified [Number of States] or [State Switch Condition].
State List
The display changes to a state corresponding to the combination of ON/OFF values of the bit address.
When [Change state by bit combination] is selected and the combination of the ON/OFF values of bits does not match with any of the combinations in the [Number of States], the lamp does not display properly. For example, if the [Number of States] is 3, you can use states 0, 1, and 2. Turning on bits 1 and 2 creates the [State 3] which is invalid, and the lamp continues to display its previous valid state. If you change the screen with lamp from another screen while the state 3, the lamp will not be displayed.
When [Change state by bit] is selected and multiple bits are ON, the state is determined by the bit address that was turned ON first.
|
[Number of States] |
Selection in [Select Shape] |
Change state by bit combination |
Change state by bit |
||||||
|---|---|---|---|---|---|---|---|---|---|
|
Bit 4 |
Bit 3 |
Bit 2 |
Bit 1 |
Bit 4 |
Bit 3 |
Bit 2 |
Bit 1 |
||
|
2 |
OFF |
Bit Address = 0 |
|||||||
|
ON |
Bit Address = 1 |
||||||||
|
Greater than or equal to 3 |
State 0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
|
State 1 |
0 |
0 |
0 |
1 |
0 |
0 |
0 |
1 |
|
|
State 2 |
0 |
0 |
1 |
0 |
0 |
0 |
1 |
0 |
|
|
State 3 |
0 |
0 |
1 |
1 |
0 |
1 |
0 |
0 |
|
|
State 4 |
0 |
1 |
0 |
0 |
1 |
0 |
0 |
0 |
|
|
State 5 |
0 |
1 |
0 |
1 |
- |
||||
|
State 6 |
0 |
1 |
1 |
0 |
- |
||||
|
State 7 |
0 |
1 |
1 |
1 |
- |
||||
|
State 8 |
1 |
0 |
0 |
0 |
- |
||||
|
State 9 |
1 |
0 |
0 |
1 |
- |
||||
|
State 10 |
1 |
0 |
1 |
0 |
- |
||||
|
State 11 |
1 |
0 |
1 |
1 |
- |
||||
|
State 12 |
1 |
1 |
0 |
0 |
- |
||||
|
State 13 |
1 |
1 |
0 |
1 |
- |
||||
|
State 14 |
1 |
1 |
1 |
0 |
- |
||||
|
State 15 |
1 |
1 |
1 |
1 |
- |
||||
|
State 16 |
- |
- |
|||||||
|
· · |
- |
- |
|||||||
|
State 255 |
- |
- |
|||||||
