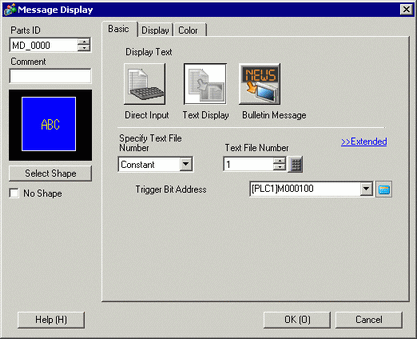

Specify Text File Number
Choose how the Text File Number will be specified.
Constant
Specify a set constant in [Text File Number]
Address
Select an address that will store the Text File Number.
Constant
Shows/hides the fixed text by turning the bit ON/OFF.
Text File Number
Set a number for the text from 1 to 8,999.
Trigger Bit Address
Set a bit address to display the text. Displays the text selected in [Text File Number] if you turn ON this bit and hides the text if you turn it OFF.
Address
Displays desired text on the Message Display.
Text File Number Word Address
Set the address where the text file number to display is stored. The text with the number stored in this address displays.
Data Type
Select the data type of the text file number to be stored in [Text File Number Word Address] from [Bin] or [BCD].
