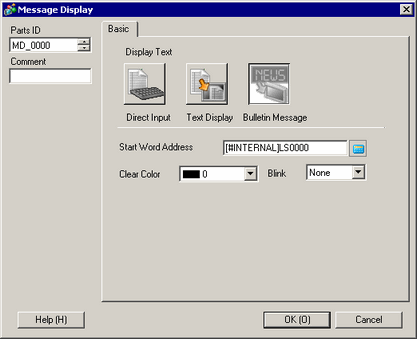

Start Word Address
Select the start internal address (LS area, USR area or memory link system area) which will trigger the message display.
17.9.2 Format of Specified Address
Clear Color
Select a color of the display area used when a message is cleared.
Blink
Select the Part blink and blink speed.
Depending on your display unit's model and [Color] settings, you may not be able to set Blink (from the [Project] menu, point to [System Settings] and click [Display Unit]).
1.6 Supported Colors
