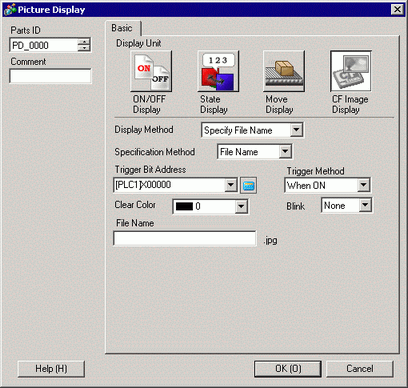

9.6.4.2 CF Image Display/SD Image Display - Basic Settings (Specify File Name - File Name)

Display Method

Set the display method of files saved in a CF card/SD card.

Specify File Name

Specifies the file name of a JPEG file stored in a CF card/SD card and displays the image.

Specification Method

Set the method for specifying files saved in a CF card/SD card.

File Name

Use [File Name] to directly specify the file name and folder path of an image to display on the screen.
For more details, please refer to the following.
9.7.4 Restrictions for Picture Display (CF/SD Image Display)

Trigger Bit Address

Set the bit address which controls the image display.

Trigger Method

Set whether to display an image with the bit address ON or OFF.

Clear Color

Set the color when there is no image display.

Blink

Select the blink and blink speed.

File Name

Input an image file name to display.
