8.11.2.2 Registering and Using Images

Using Image Registration and using its images, you can reduce the volume of image data.

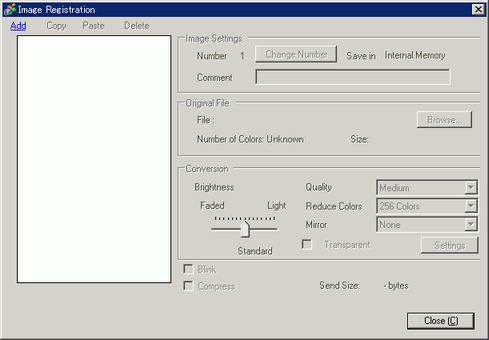

1. From the [Common Settings (R)] menu, select [Image Registration (I)], or click to display the following dialog box.

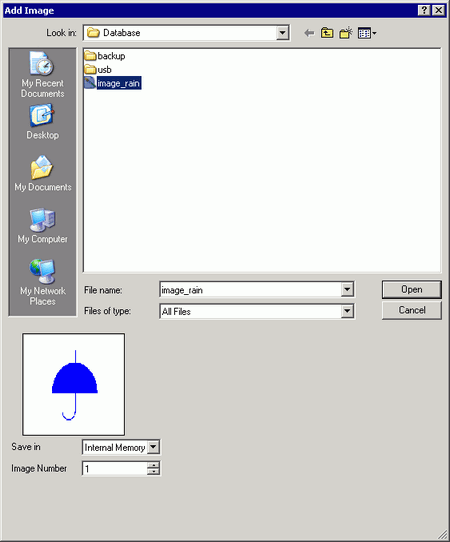

2. Click [Add]. The [Add Image] dialog box appears. Select a graphic and click [Open].

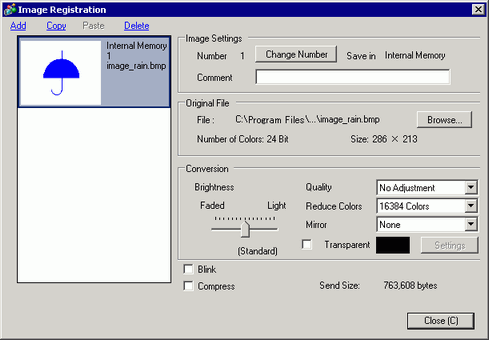

3. If required, add comments to images, set the brightness or colors, and then click [Close] . Image registration is complete.

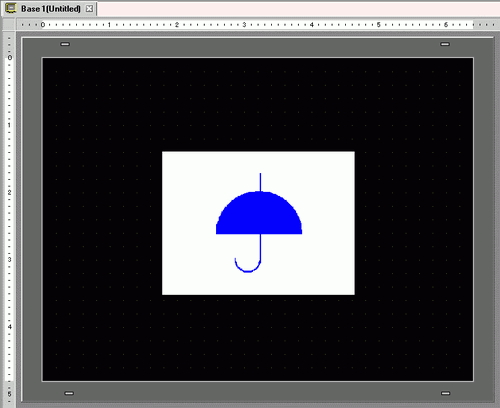

4. The registered image can be loaded to the screen. The following describes the steps.
