8.10.4 Placing Graphics Registered in a Package

You can place graphics registered in the package by dragging and dropping on the screen.

  1. Displays registered shape lists. From the [View (V)] menu, select [Package (P)], or click .

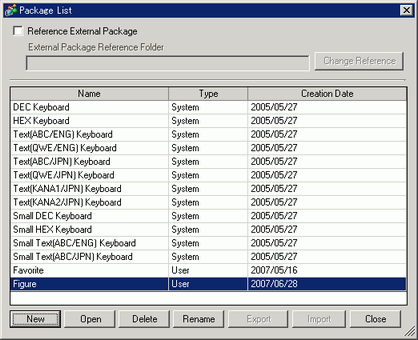

  2. In the [Package List] dialog box, select the package with the shape you want, and click [Open]. (For example, figure)

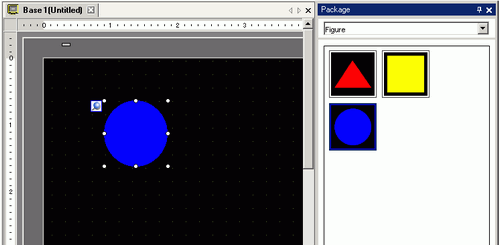

  3. The [Package] dialog box is will appear. Select a picture and drag it to the drawing screen to place it.
