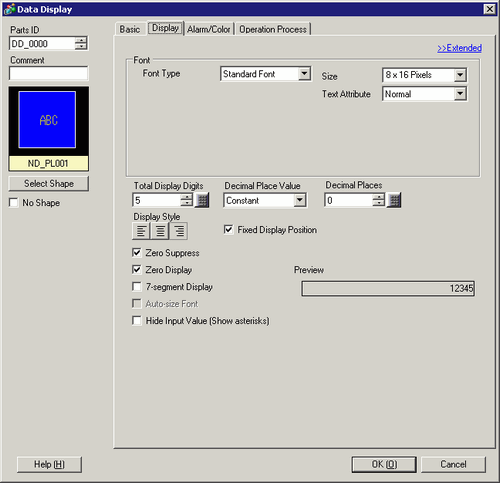

Sets the font and attributes for display of numeric values.
Font
Sets a font for the numeric values.
Font Type
Select a font type for the numeric values from [Standard Font], [Stroke Font], or [Bitmap Font].
Stroke Font and Standard Font
Standard Font
You can specify the vertical and horizontal dimensions of a character in bitmap fonts. When you magnify/shrink characters, the outline may become rough or the letter may appear compressed.
Stroke Font
This is an outline font where the ratio of the character height/width is fixed. The letters will have a smooth outline even if you magnify/shrink them. However, this font uses more disk space on the display unit.
Size
Chooses a font size for the numeric values.
Standard Font
(8 to 64)×(8 to 128)
Standard Font (Fixed Size)
Choose from [6x10], [8x13], or [13x23] (Displays single-byte characters only)
Stroke Font
6 to 127
Text Attributes
Select the text attributes.
Standard Font
Choose from [Standard], [Bold], [Shadow]
(When using the fixed font size [6x10], select either [Standard] or [Shadow].)
Stroke Font
Choose from [Standard], [Bold], [Outline]
When using [Auto-size Font] with either [7-segment Display] or [Stroke Font], the [Text Attribute] cannot be defined.
Image Font
Window font will be converted to bitmap images and displayed on a display unit.
Select Font
Define the font, and set up the [Style], [Size], and [Font Set]. The properties you can define (Style, Size, and Font Set), differ between fonts.
A proportional font cannot be selected.
Characters of the image font used in Data Display [Numeric Display] will be automatically registered. You can check registered content in the [Image Font] area's [Characters Used] setting.
Bitmap Font
You can use prepared bitmap images to uniquely express numeric values and symbols.
Select the model to use from the registered bitmap font models.
Color
Set a color for the bitmap font.
Font Size
Width
Set the Bitmap font width between 1 to 200.
height
Set the Bitmap font height between 1 to 400.
Transparent
Set whether the background of the bitmap font will be transparent.
Depending on the model, you may not be able to use the transparent setting.
Settings
Preview all characters, such as numeric values and symbols, of the selected model.
Total Display Digits
Set the number of digits for the display data. Numbers after the decimal point are included in the display digits. However, the decimal point is not included in the display digits.
Decimal Place Value
Select the designation method for specifying the Decimal Places. This setting is available when the [Data Type] is [Dec] or [BCD].
Constant
Specify a fixed value for the Decimal Places. (Direct Specification)
Address
Specify the address where the Decimal Places are stored. (Indirect Specification)
Decimal Places
When [Decimal Place Value] is [constant], select the number of digits after the decimal point.
When the Total Display Digits is 5, and the Number of Decimal Places is 2, it will look as follows:
The number of decimal places you can set up depends on the [Data Type].
|
Data Length |
Data Type |
Total Display Digits |
Decimal Places |
|---|---|---|---|
|
Setting Range |
|||
|
8 bits |
Dec |
1 to 11 |
0 to 10 |
|
Hex |
1 to 11 |
— |
|
|
BCD |
1 to 11 |
0 to 10 |
|
|
Oct |
1 to 11 |
— |
|
|
Bin |
1 to 8 |
— |
|
|
16 bit |
Dec |
1 to 11 |
0 to 10 |
|
Hex |
1 to 11 |
— |
|
|
BCD |
1 to 11 |
0 to 10 |
|
|
Oct |
1 to 11 |
— |
|
|
Bin |
1 to 16 |
— |
|
|
32 bit |
Dec |
1 to 11 |
0 to 10 |
|
Hex |
1 to 11 |
— |
|
|
BCD |
1 to 11 |
0 to 10 |
|
|
Bin |
1 to 32 |
— |
|
|
Float |
1 to 17 |
0 to 16 |
|
Number of Decimal Places Address
When the [Decimal Place Value] is [Address], specify the Address where Decimal Places are stored.
Display Style
Select the alignment of the numeric display area's numeric value: [Align Right], [Align Left], or [Align Center].
Fixed Position
Select this option to display the numeric value in the center of the part.
Zero Suppress
If this option is selected, leading zeros are not displayed.
For example, Number of Display Digits = 4
Zero Display
Displays "0" when the data is zero.
7-segment Display
Select this option to show values as a 7-segment display.
This cannot be set when [Bitmap Font] and [Image Font] is selected.
This option is not available when a [Fixed Size] is selected in the font [Size] list.
This cannot be set if the [Display Format] option is set on the [Basic] tab's [Extended] screen.
Auto-size Font
For use with the Stroke Font, select this option to display the value without the top and bottom margins.
This cannot be set when [Standard Font], [Bitmap Font], or [Image Font] is selected.
This setting is unavailable for [7-segment Display].
Hide Input Value (Show asterisks)
Set whether Input Values will be indicated by asterisks. This feature is useful when entering passwords or other types of inputs that require increased security.
You cannot use [Hide Input Value (Show asterisks)] with the [7-segment Display].
Preview
Displays the data image according to the settings.
