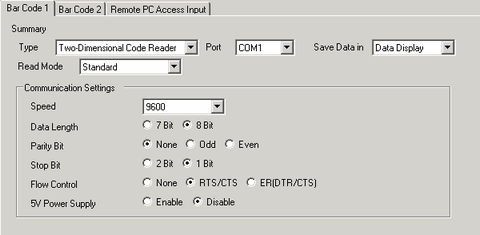

Port
Select the port to connect: [COM1], [USB/SIO(RS232C)], or [USB].
When IPC Series is selected for the Display, it can be set only to COM1.
COM1, USB/SIO(RS232C)
Select when connecting to a COM1 or USB/SIO(RS232C) port.
-
When [USB] is selected, set up items for [Communication Settings] will not be displayed.
Speed
Select a communication speed from [2400], [4800], [9600], [19200], [38400], [57600] or [115200].
Data Length
Choose the communication data length from [7 bit] or [8 bit].
Parity
Select the communication parity bit: [Even], [Odd] or [None].
Stop Bit
Choose the communication stop bit length: [1 bit] or [2 bit].
Flow Control
Select the communication control method: [None], [RTS/CTS Control], or [ER(DTR/CTS) Control].
If you selected [USB/SIO(RS232C] for the [Port], this property is fixed to [None].
5V Power Supply
Designate whether or not to set the 5V power supply.
If you selected [USB/SIO(RS232C] for the [Port], [Disable] is selected automatically.
Read Mode
Select the read mode.
-
Standard
In [Standard] mode, binary data cannot be handled. In this mode, two-dimensional code readers from other manufacturers can read data using the above setting.
-
DENSO QR Code Reader
In [DENSO QR Code Reader] mode, binary data can be handled. But in this case, the above communication format needs to be set to a two-dimensional code reader as well.
-
Tohken Code Reader
In [Tohken Code Reader] mode, the above communication format needs to be set to a two-dimensional code reader as well. Binary data cannot be handled in [Tohken Code Reader] mode. Unlike DENSO's, the Tohken code reader does not check the number of digits or BBC and determines that the code data ends at the CR+LF code in the code data.
-
When [Port] is "USB" and [Type] is "Two-dimensional Code Reader", only" Standard" Read Mode can be set.
